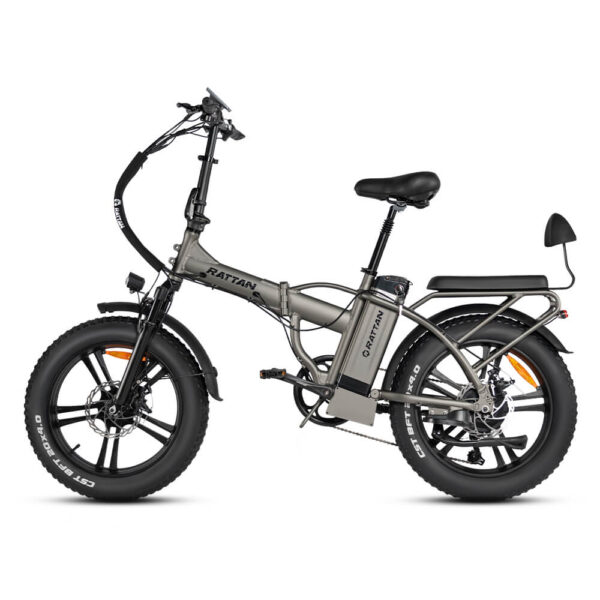

Rattan LM 750 PRO Folding 750W 48V Fat Tire Electric Bike
The Rattan LM 750 PRO is a feature-packed, yet affordable electric bike. The foldable Rattan e-bike has been designed to raise the bar for quality and value in the electric bike market. This folding electric bike is well equipped with an ultra-efficient brushless 750W hub motor, 48V 13Ah lithium battery, front suspension, and seat post suspension for maximum comfort.
With the added safety features of disc brakes on both wheels, this folding e-bike is lightweight, making it very easy to transport by car or public transportation. The 4” fat tires offer a comfortable ride on different terrains, making your commute easier. When folded, the Rattan LM 750 Pro is suitable for use on most public transport and in cars so you can easily take it with you wherever you go. Hop on for cruising around town or hitting the beach.
The LM 750 PRO has an amazing top speed of 28 miles/hour, expanding more possibilities for your riding experience. Whether commuting for work or off-roading, delivering food or grocery shopping, taking short trips, or going for a ride around the city for sightseeing; this Rattan e-Bike will be an essential part of your day-to-day activities.
Rattan LM 750 PRO Folding Fat Tire 750W 48V Electric Bike Features
- Integrated Magnesium Alloy Wheel Alloy: will perform better in terms of cushioning pressure and shock resistance. The rigidity in alloy wheels helps them endure high amounts of horsepower and torque with relative ease. Ride in style with the CST, custom 20″ x 4.0″: e-bike-rated wheels designed with puncture-resistant liner.

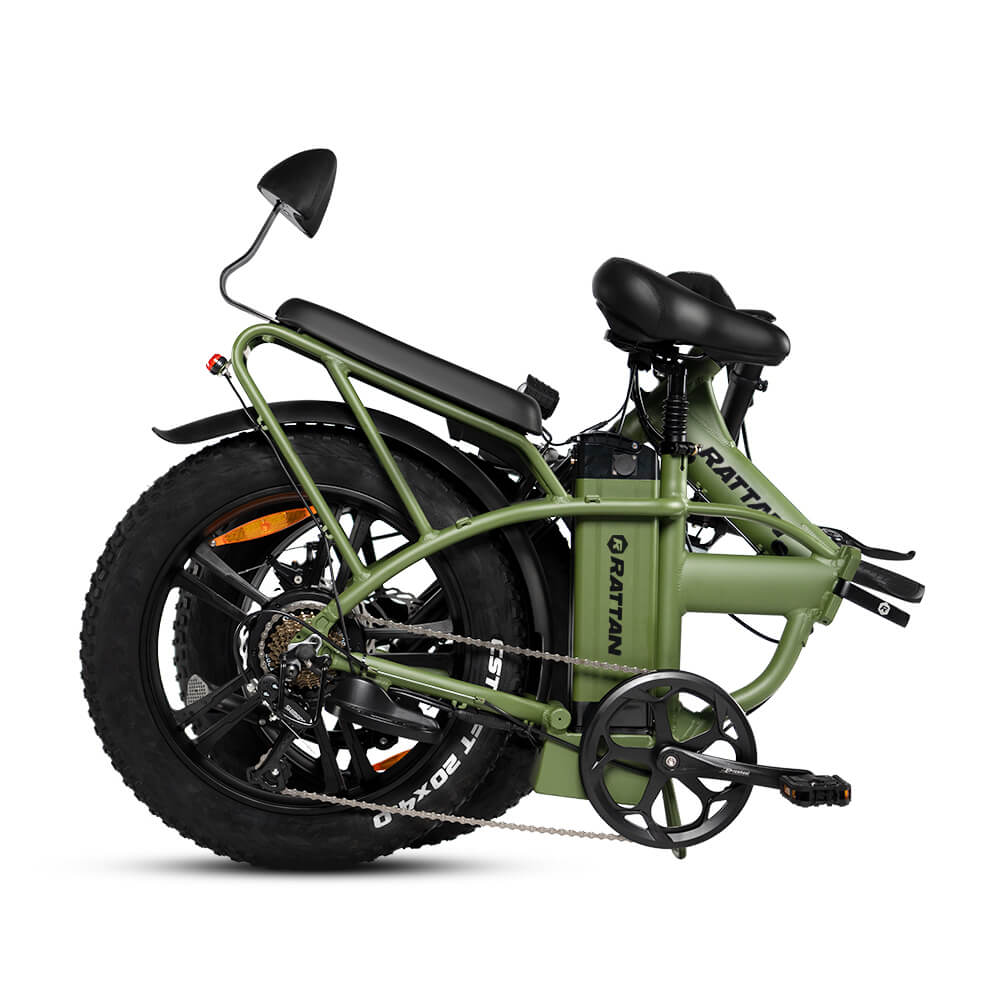

- Foldable Portable Design Frame: LM/LF 750 PRO collapses into an easy-to-carry or store design in just 10 seconds for added convenience. The bike can be carried with ease even up a steep staircase, and also small enough to fit into any nook or cranny of living area. Take your bike with you on the train, RV, or trunk of your SUV with the convenient folding frame featuring foldable pedals.
- Multifunctional Display: Rattan Ebikes custom GD06 display with Energy indicator, pedal-assist level / Speedometer, Odometer/headlight /walk mode, and more.
- Battery Management System: BMS offers protection against temperature extremes. BMS tech keeps safe during operation, overall performance, and longevity. It protects the battery cells from damage caused by being overcharged or over-discharged.
- LCD Display: Rattan Electric bikes custom GD06 display with energy indicator, pedal-assist, speedometer, odometer, headlight, walk mode, and more.
- Bilateral Pistons: Brake Calipers improving braking efficiency
- Ride Control Features: Multiple ride control features at your convenience, for the best outdoor ride – half-twist grip throttle, 5-level pedal assist, switch on/off cruise control & Shimano 7-speed gear shift system.
- Rear Rack: Conveniently carry an extra person on the back of the bike.
- Powerful Motor: Designed with a powerful 750w 48V Brushless Rear Hub Motor: 1200W (Peak) 750W (Sustained), helps you navigate the outdoor terrains.
- Long Range: Go further on your adventure with a range of up to 55 miles and to speed of 28 miles/hour.
- Payload Capacity: Bring home your groceries with a bike payload capacity of 300 lbs.
- Safety First: Comes with automatic integrated front light and integrated taillight with brake light indicator functionality.
Rattan LM 750 PRO Folding Fat Tire 750W 48V Electric Bike – Specifications |
Motor | 750W 48V Brushless Rear Hub Motor, (1200W Peak) |
Throttle | Half twist-grip throttle |
Display | LCD Display |
Top Speed | 28 miles/hour |
Battery | 13Ah |
Pedal Assist | 5 Levels |
Charger | 2A Charger, 6-7 Hour Charging |
Range | Up to 55 miles |
Frame | 6061 Single-Butted Aluminum Alloy |
Weight | Weight: 64lbs + 9.2lbs (battery) |
Payload | 300lbs Payload Capacity |
Controller | Rattan sine wave controller,48V, 25A,750W |
Fork | Suspension Fork with 80mm travel, with lockout |
Weight Limit | Maximum Payload Capacity: 300 lbs |
Kick Stand | Included, Rear Mount |
Bottom Bracket | Square Taper, Sealed |
Crankset | 170mm w/ 52 T |
Wiring | Water-resistant connectors and wiring harness |
Wheels | Integrated Alloy wheelset Better performance of cushioning pressure and shock resistance inflexible nature |
Shift Lever | Shimano 7-speed gear shift system |
Brakes | Bilateral Pistons Brake Calipers – improving braking efficiency |
Tubes | Butyl Rubber, Schrader Valve |
Hubs | 750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure electric bike regulatory compliance and may vary depending on riding conditions. |
Tires | CST, custom 26″ x 4.0″, e-bike rated with puncture-resistant liner |
Saddle | Rattan by QS-8031 |
Seatpost | Forged Alloy, 30.4mm x 350mm suspension seat post, 2-Bolt Clamp |
Foldable Stem | 38.1mm length, 10° Rise |
Seat Clamp | Quick Release |
Handlebars | 25.4MM*2.2T |
Headset | VP Sealed Bearing Headset |
Grips | Ergonomic Comfort |
Pedals | Foldable pedals |
Lights | Automatic integrated front light and Integrated taillight with brake light indicator functionality |
Rider Height | Recommend 5’3 – 6’4 |
